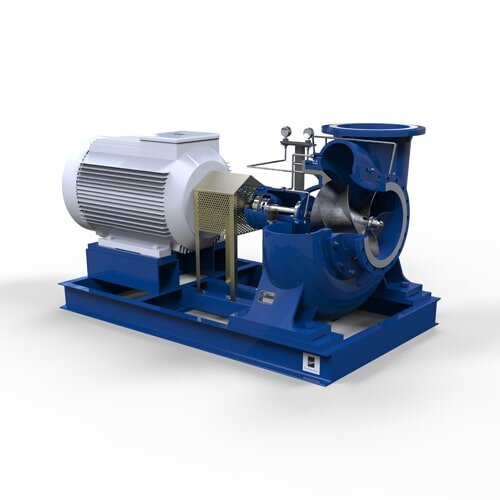

MF
Low head, high capacity pumps, Gland packed/mechanical seal, 50HZ/60HZ availability
- Delivery size from 200 mm to 650 mm (8 to 26)
- Capacity up to 7000 m3/hr (30,820 US gpm)
- Head up to 30 metres (90 ft.)
- Temperature 5° C to 140° C

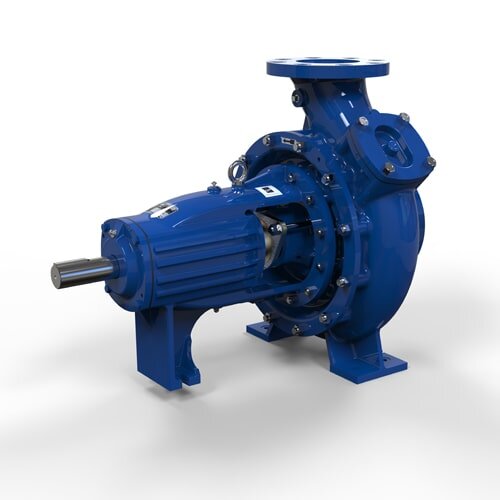

SHM
Solid size up to 105 mm, Gland packed/mechanical Seal, 50 Hz/60 Hz availability
- Delivery size up to 200 mm
- Capacity up to 800 m3/hr
- Head up to 90 metres
- Working pressure up to 16 bar
CPHM
Conforming to DIN 24256/ISO 2858, Back pull-out design, Gland packed/mechanical seal, 50HZ/60HZ availability
- Delivery size from 20 mm to 200 mm (3/4 to 8)
- Capacity up to 750 m3/hr (3300 US gpm)
- Head up to 150 metres (480 ft.)
- Temperature (-) 30° C to 90° C
RKB
Ring section diffuser casing, Stuffing box cooling for high temperature applications, Available in vertical configuration
- Delivery size up to 250 mm
- Capacity up to 850 m3/hr
- Head up to 850 metres
- Working pressure 40 to 64 bar

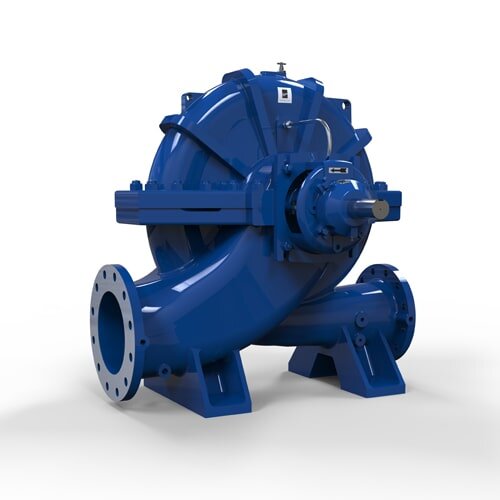

UP
Gland packed/mechanical seal, Good suction performance and low NPSH, Vibration-free performance
- Delivery size up to 1220 mm
- Capacity up to 40,000 m3/hr
- Head up to 220 metres
- 50HZ/60HZ availability
SCT / SCE
Pump axis horizontal or vertical, Gland packed/mechanical seal, 50HZ/60HZ availability
- Delivery size up to 250 mm
- Capacity up to 1100 m3/hr
- Head up to 115 metres

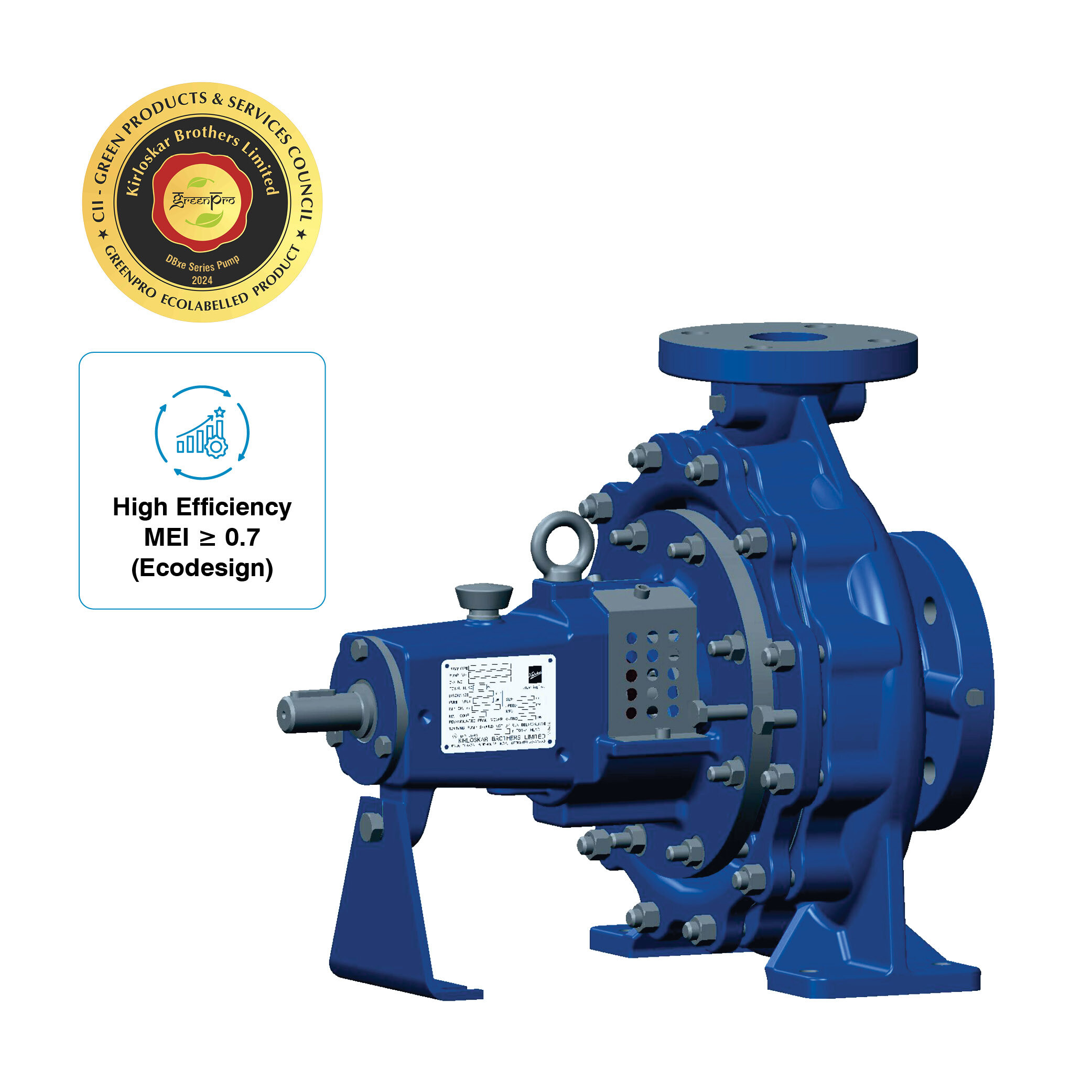

DBxe
The DBxe pump series sets a new standard for energy-efficient water pumps
- Delivery size: 32 to 150 mm
- Capacity: Up to 550 m3/hr
- Head: Up to 100 meters
- Speed from 1450 & 2900 rpm, 1760 & 3500 rpm

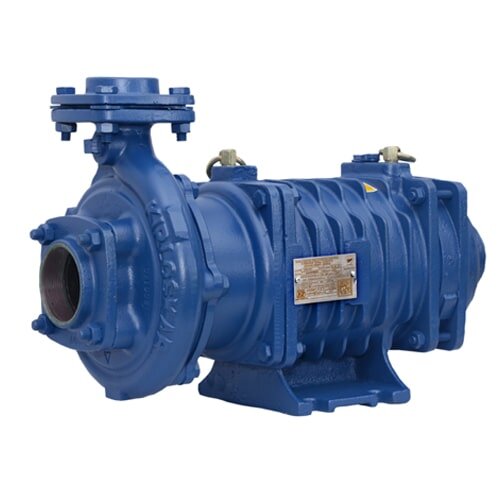

KDS / KOS
Wide Voltage Design, Dynamically Balanced Rotating Parts, Replaceable Wearing Parts, Easy Maintainable Design
- Head Range: Up to 76 metres
- Discharge Range: Up to 38 LPS
- Power Ratings: 2.2 to 11.2 kW (3 to 15 HP)
- Voltage Range: 200 to 440 volts

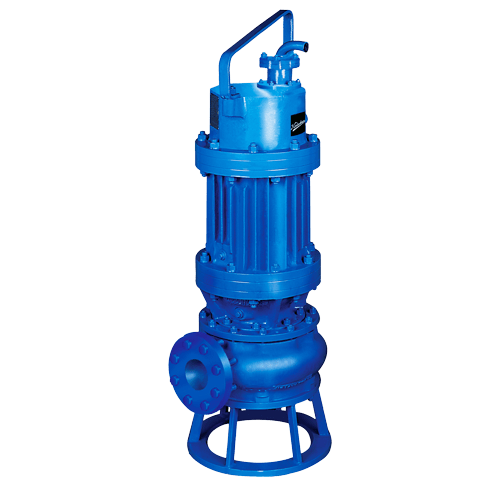

NS
Non-clog two vane or single vane enclosed impeller, Permissible solid size up to 85 mm
- Delivery size up to 300 mm
- Capacity up to 1800 m3/hr
- Head up to 90 metres
- Max permissible solid size up to 300 mm
UP
Gland packed/mechanical seal, Good suction performance and low NPSH, Vibration-free performance
- Delivery size up to 1220 mm
- Capacity up to 40,000 m3/hr
- Head up to 220 metres
- 50HZ/60HZ availability
SCT / SCE
Pump axis horizontal or vertical, Gland packed/mechanical seal, 50HZ/60HZ availability
- Delivery size up to 250 mm
- Capacity up to 1100 m3/hr
- Head up to 115 metres
PAT
A unique pumping solution that can be operated in reverse as a turbine for generating micro hydroelectricity (up to 100 kW)
- Off-the-shelf availability
- Lower initial cost
- Sturdy construction
SHM
Solid size up to 105 mm, Gland packed/mechanical Seal, 50 Hz/60 Hz availability
- Delivery size up to 200 mm
- Capacity up to 800 m3/hr
- Head up to 90 metres
- Working pressure up to 16 bar
CPHM
Conforming to DIN 24256/ISO 2858, Back pull-out design, Gland packed/mechanical seal, 50HZ/60HZ availability
- Delivery size from 20 mm to 200 mm (3/4 to 8)
- Capacity up to 750 m3/hr (3300 US gpm)
- Head up to 150 metres (480 ft.)
- Temperature (-) 30° C to 90° C
RKB
Ring section diffuser casing, Stuffing box cooling for high temperature applications, Available in vertical configuration
- Delivery size up to 250 mm
- Capacity up to 850 m3/hr
- Head up to 850 metres
- Working pressure 40 to 64 bar
UP
Gland packed/mechanical seal, Good suction performance and low NPSH, Vibration-free performance
- Delivery size up to 1220 mm
- Capacity up to 40,000 m3/hr
- Head up to 220 metres
- 50HZ/60HZ availability
SCT / SCE
Pump axis horizontal or vertical, Gland packed/mechanical seal, 50HZ/60HZ availability
- Delivery size up to 250 mm
- Capacity up to 1100 m3/hr
- Head up to 115 metres
