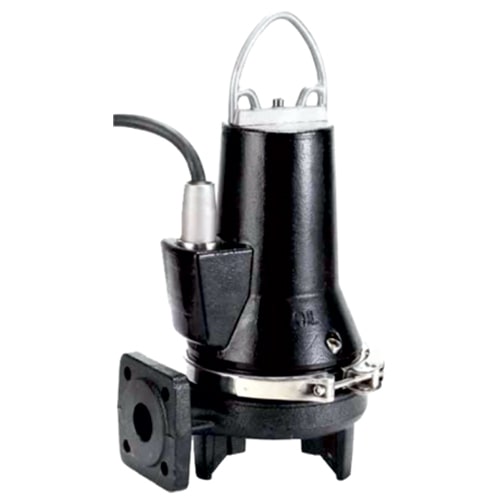

Cutter Pump – CWC
- Waste water with discharge from water closets
- Sewage from restaurants / hotels / camping sites etc.
- Effluents from abattoirs
- Effluents & waste from waste water or effluent treatment plants.
- Sewage treatment in communities or area where no sewer system is Available
Applications:
- Waste water with discharge from water closets
- Sewage from restaurants / hotels / camping sites etc.
- Effluents from abattoirs
- Effluents & waste from waste water or effluent treatment plants.
- Sewage treatment in communities or area where no sewer system is Available
Technical Specifications:
- Head: Up to 45 metres
- Capacity: Up to 7 m3/ h
- Power Rating: 1.2 to 4.0 kW (1.6 to 6 HP)
- Voltage Range: 380 ± 10%
- Operating Temperature: 40 o C
- Insulation: F class
- Protection: IP 68
Features:
- Special cutter to grind solids into small pieces
- Water Tight Cable Connection to ensure no liquid entry into motor
- Specially Designed Lifting Handle
- Stainless Steel Clamp for easy and quick dismantling of pump casing
