KDI – Energy Efficient Variants (EE2 | EE4 | EE5)
15 Hp Three-phase Kirloskar monobloc pumps comprise a flatter efficiency curve for efficient operation. These heavy-duty self-priming monobloc pumps can withstand voltage fluctuations ranging from 350 to 440 volts. Kirloskar monobloc pumps are perfectly suited for industrial applications for handling clear water at high pressures and for other water-handling applications in air-conditioning and refrigeration systems, cooling towers, firefighting systems, etc.
Available KDI Pump Models :
- KDI Pump – Energy Efficient Variants (EE2 | EE4 | EE5)
- KDI EE2 – Standard Energy Efficient Variant
Designed for dependable industrial and commercial water handling, the KDI EE2 offers reliable performance with optimized energy consumption.
Highlights:
- IE2 efficiency motor
- Ideal for water supply, cooling systems & industrial circulation
- Robust cast iron construction
- IP55 protection with F-class insulation
- Suitable for continuous duty applications

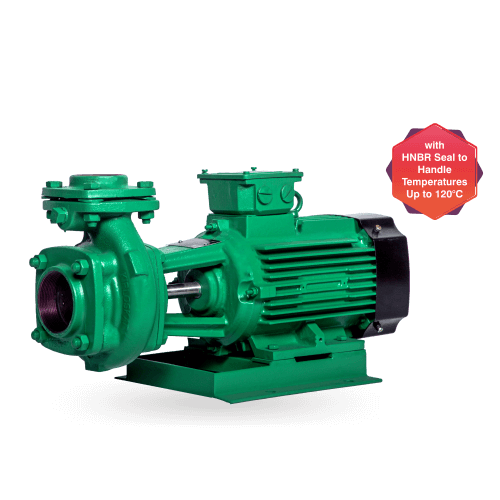

KDI EE4 – Premium Efficiency Variant
The KDI EE4 comes equipped with a high-efficiency IE4 motor, offering significantly lower power consumption and reduced operating costs.
Highlights:
- IE4 premium efficiency motor
- Lower life-cycle cost due to reduced energy usage
- Ideal for HVAC, fire fighting & high-pressure applications
- CED coated components for corrosion resistance
- Mechanically sealed for leak-free operation
KDI EE5 – Ultra-Premium Efficiency Variant
The KDI EE5 represents ultra-premium energy efficiency with advanced hydraulic design for maximum output with minimum power input.
Highlights:
- Ultra-premium efficiency motor (EE5 class)
- Up to ~15–16% energy savings compared to conventional models
- Best suited for large industrial & commercial installations
- High thermal endurance with F-class insulation
- Designed for high reliability & long service life
Applications:
- Air conditioning and refrigeration systems
- Cooling towers
- Clear water handling at high pressure in industries
- Irrigation in horticulture & agriculture
- Fire fighting systems
Technical Specifications:
- Head Range – Up to 80 Metres
- Discharge Range – Up to 39 LPS
- Power Rating – 1.5 to 22 kW (2 to 30 HP)
- Voltage Range – 350 to 440 Volts (Three Phase)
- Insulation – F Class
- Protection – IP55
Features:
- High Efficiency & Energy Saving Design – This monobloc pump has a higher output at lesser operating cost and longer life
- Design to Prevent Overloading – Protects pump from overloading & trouble free operations for the years
- Wide Voltage Design – Pump has the capacity to operate from 350 to 440 volts
- Automatic Air Release- Automatically releases air when the pump starts which ensures swifter and smoother operations
- CED coating – It provides 5 times more protection from corrosion over conventional painting
- Superior Mechanical Seal- Superior quality of mechanical seal ensures zero leakage, lower friction loss, and protects from wearing of shaft, thus resulting in easy maintenance and longer life.>
