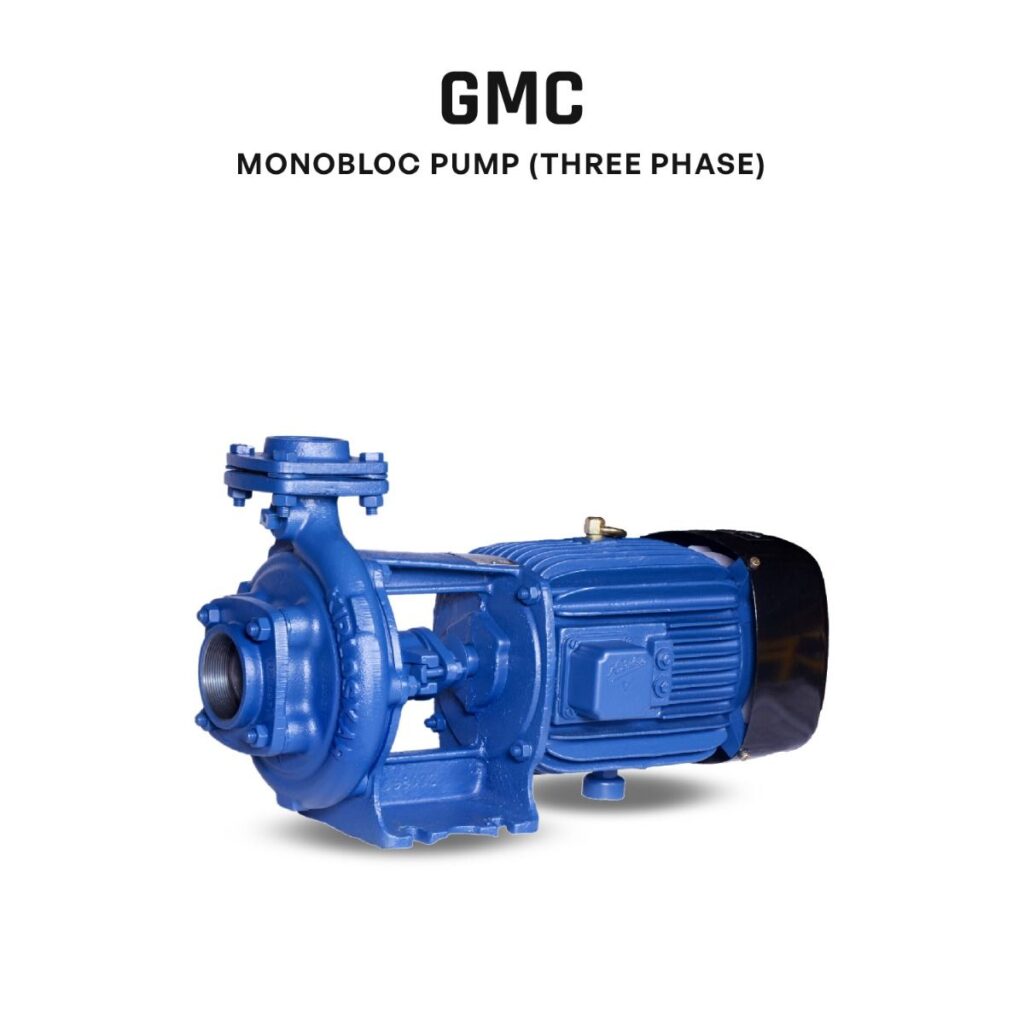

KDS & GMC (Three Phase)
Kirloskar Monoblock pump comprises a flatter efficiency curve for efficient operation. Three Phase 1.5 Hp heavy-duty monobloc pumps can withstand voltage fluctuations ranging from 300 to 440 Volts, These monobloc water pumps are perfectly suited for air conditioning and refrigeration systems, cooling towers, clear water handling at high pressure in industries, irrigation in horticulture and agriculture, fire fighting system.
Applications:
- Air Conditioning and Refrigeration System
- Cooling Towers
- Clear Water Handling at High Pressure in Industries
- Irrigation in Horticulture & Agriculture
- Firefighting System
Technical Specifications:
- Head Range: Up to 76 metres
- Discharge Range: Up to 49 LPS
- Power Ratings: 0.37 to 22 kW (0.5 to 30 HP)
- Voltage Range: 300 to 440 volts (three phase)
- Insulation: B class (up to 7.5 HP)/F class (above 7.5 HP)
- Protection: IP 44 / IP 55
Features:
- Flatter Efficiency Curve
- Wide Voltage Design
- Designed to Prevent Overloading
- Replaceable Wearing Parts
- Dynamically Balanced Rotating Parts
- CED – Cathode Electro Deposition Coating
- Automatic Air Release
- High Efficiency and Energy Saving Design
