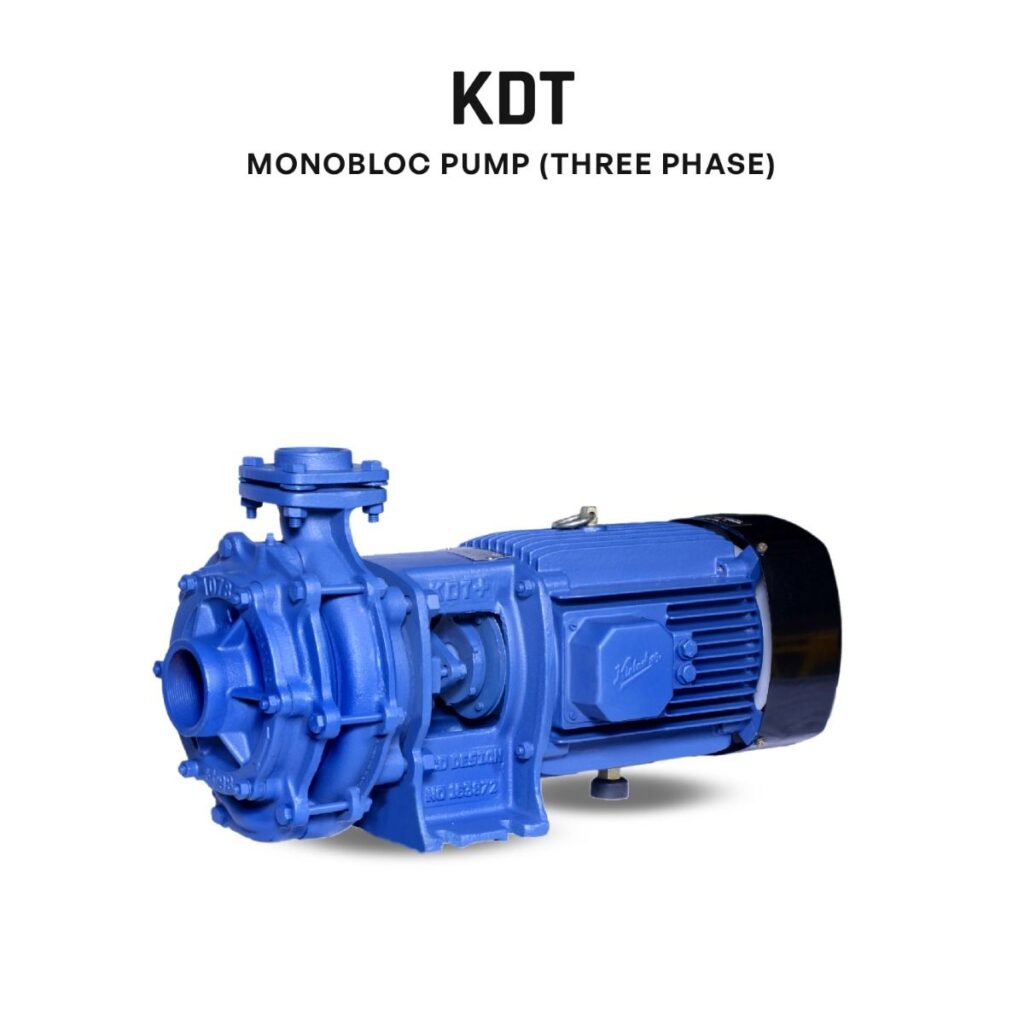

KDT (Three Phase)
Three phase 10 Hp Kirloskar monobloc pumps comprise a flatter efficiency curve for efficient operation in the entire operating range. These heavy-duty monobloc water pumps can withstand voltage fluctuations ranging from 300 to 440 volts. Kirloskar’s centrifugal monoblock pumps are perfectly suited for industrial applications for handling clear water at high pressures and for other water-handling applications like air-conditioning and refrigeration systems, cooling towers and firefighting systems.
Applications:
- Air conditioning and refrigeration systems
- Cooling towers
- Clear water handling at high pressure in industries
- Fire fighting systems
- Industrial pressure boosting
Technical Specifications:
- Head Range : Upto 98 metres
- Discharge Range : Upto 20 lps
- Power Ratings : 3.7 to 15 kW (5 to 20 HP)
- Voltage Range : 300 to 440 Volts (Three Phase)
- Insulation : B / F Class
- Protection : IP 44 / IP 55
Features:
- Innovative design manufactured at a state-of-the-art plant delivers optimum efficiency at lower energy consumption resulting in significant cost savings
- Design to Prevent Overloading – This monobloc pump protects from overloading & trouble free operations for the years
- Wide Voltage Design – Pump has the capacity to operate from 300 to 440 volts
- Automatic Air Release- Automatically releases air when the pump starts which ensures swifter and smoother operations
- CED coating – Provides 5 times more protection from corrosion over conventional painting
