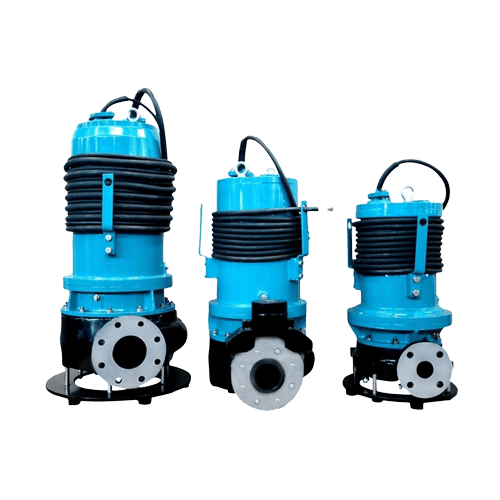

Non-clog Submersible Pump – i-NS
Kirloskar i-NS submersible pump is used for sewage and seepage application. i-NS submersible pumps are single stage pumps equipped with a non-clogging impeller, which allows smooth passage of solids, thus making them suitable for a wide range of applications. i-NS pumps can be offered in stationary as well as transportable arrangements. The stationary arrangement is supplied with a pump connector unit and the connector unit is connected to the pump support bracket along with a rubber diaphragm to make it a leak-proof joint.
Applications:
- Contaminated effluents
- Industrial waste water
- Storm water
- Trench and tunnel water
- Drain water
- Saline water
- Drainage water
- Sewage water
Technical Specifications:
- Delivery size up to 150 mm
- Capacity up to 300 m3/hr
- Head up to 50 metres
- Max permissible solid size up to 125 mm
Features:
- Impellers are available with two or multiple vanes in semi-open and enclosed type to be able to cater to a wide range of application areas
- Permissible solid size up to 125 mm
- Double mechanical seal with back to back arrangement to ensure there is no ingress of pumping liquid in the motor
