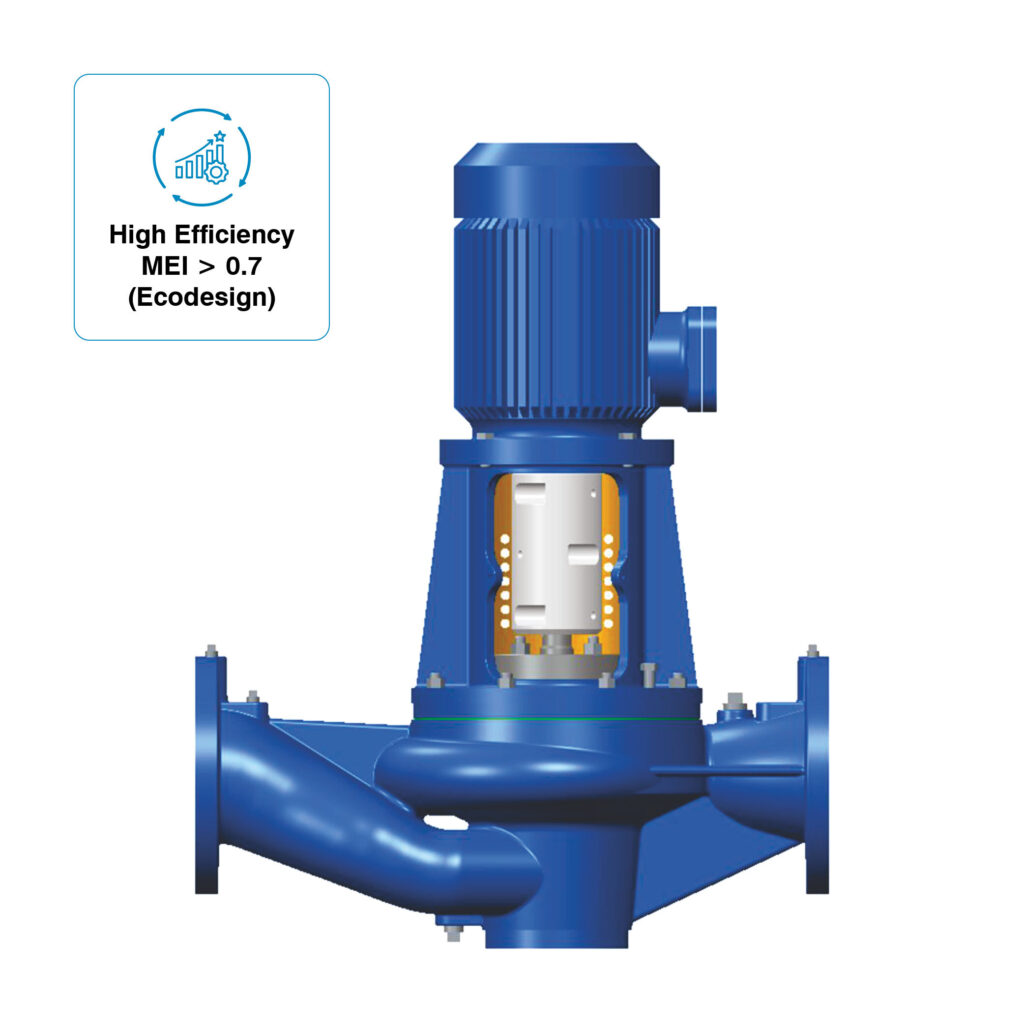

Vertical Inline Long Coupled Pump – KW-LC

Vertical Inline Long Coupled Pump – KW-LC

Kirloskar vertical inline pumps are vertical single-stage in-line centrifugal pumps of the close-coupled type. These are designed for circulation of liquids in heating and air-conditioning systems. Top pull-out facility permits removal of stuffing box, and impeller without disturbance to casing or suction/discharge pipework. It includes a drain at the bottom. The dynamically balanced impeller minimises vibration and increases bearing life.

Applications:

  • Water supply
  • HVAC
  • Air conditioning
  • Hot water up to 90°C
  • Drinking water
  • Cooling water
  • Fire Fighting applications

Technical Specifications:

  • Delivery size: up to 200 mm
  • Discharge Capacity (Q): 550 m3/hr (150 LPS)
  • Total Head: 52 Meters
  • Speed (Nominal): 1450 RPM
  • Suction Pressure: 12 bar subject to maximum working pressure is 16 bar Working Pressure: 16 bar
  • Temperature: : maximum upto 90° C

Features:

  • Vertical inline long coupled through axially split rigid coupling
  • Suction and Delivery nozzles are cast integral with volute and are in-line. Suction and delivery flanges are cast integral
  • Volute is designed with smooth fluid flow passages.
  • Machined surface and mounting holes are provided on the pump casing for ease of pump installation.
  • Impeller is enclosed type. It is dynamically balanced which ensures the smooth operation of the pump.
  • Pump Shaft is designed for the toughest service. The critical speed of the shaft is sufficiently above the operating speed.
  • Efficient water pumps with MEI of over 0.7, in accordance with Eco-design requirements.
×
